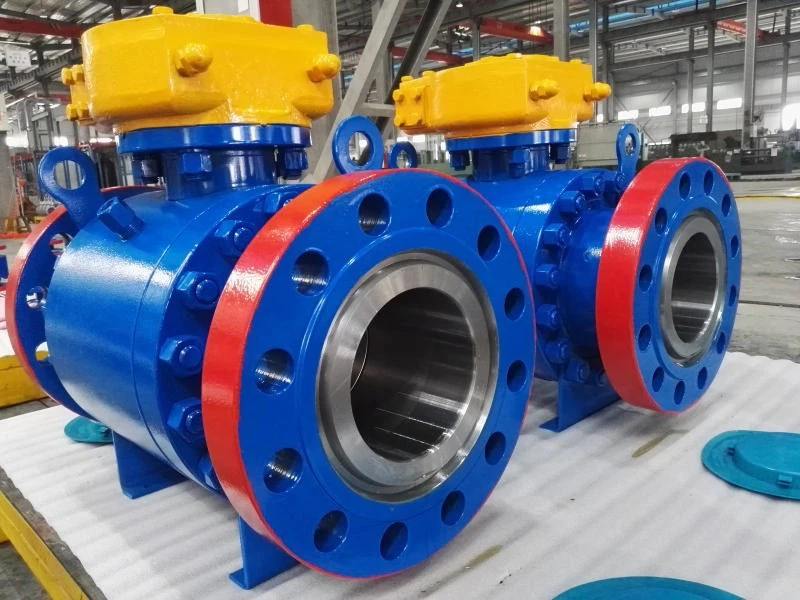

Stainless Steel Trunnion Ball Valve

Name: China Customized Stainless Steel Trunnion Ball Valve Manufacturers Suppliers - PLATINUM
Brand: Platinum
SKU: 241559967

Platinum valve produce trunnion ball valve using material stainless steel. Valve's body, ball, stem, seat ring, vent& drain plug, which are all using material Stainless steel to promote its mechanical properties like extending strength, corrosive resistance, durability. The surface treatment of stainless steel ball valve usually will be treated as smooth surface.

Send Inquiry

Product Introduction

VALVE DESIGN

Based on API 6D and Customer requirements

TEMPERATURE RANGE

-150 to 662°F (-101 to 350°C)

SIZE

NPS 1-56 (DN 25-1400)

PRESSURE RATING

ASME 150 - ASME 2500

FACE-TO-FACE

As per API 6D standard

END CONNECTIONS

RF, RTJ as per B16.5 &B16.47

BW, Butt Welded as per B16.25

SW, Socket Welded as per B16.11

Hub connection

MATERIALS:

Stainless Steel

BODY DESIGN

Forged and casting bolted two-piece and three-piece

SEAT DESIGN

Soft or metal seated with Hard facing on ball and seats

Double piston seats

Combination seats

FEATURES

Double block and bleed design (DBB)

Secondary seals in pure Graphite

Anti-Static Device

Anti Blow out stem

Emergency sealant injection on seats and stem available

Low fugitive emission stem packing available

O-ring /Lip seals and Graphite configuration

CRA overlay on all dynamic sealing areas or on all wetted parts available

Extended bonnet for low & high temperature available

OPERATOR

Manual: wrench or Gear with padlocking

Actuated: Pneumatic/Electric

TESTING & CERTIFICATIONS

Compliance with API 6D & ISO 5208 & API 598 inspection and testing

Fire safe and fire tested as per API 607

SIL 3 Certification as per IEC61508

Fugitive Emission as per ISO15848

PED 2014/68/UE

FAQ

Q: What is the turnover in 2021

A: Platinumvalve had 6 million USD turnover in 2021. Our bestselling product is our high-quality trunnion ball valve,which is widely applied for oil and natural gas pipe.

Q: Do you have a showroom?

A: Yes, showroom with full range of products.

Q: Can you customize for clients?

A: Yes, we can customize as your need, we have R&D department, our designers can make design for you and our technicians make prototype.

Q: Do you have booth in shows?

A: Yes, we will arrange the team to participate the international exibition and will have booth there. It is a good way for us to have chance to visit our clients from all of the world. We can meet and discuss with our clients or new customers in our booth. If our company have plan to attend the exibition, our team will send the official information to inform our client of our booth number and invite them to visit our booth.

Q: What is the time of a prototype:

A: About 7 days after you confirm the drawing we made for you.

Q: What is the delivery time for mass production?

A: Our delivery time is about 45 days to 70 days. The lead time is fully depended on your quantity of this order. After we sign the contract and receive the advanced payment, we will to purchase raw material.

Q: How far is your factory from the airport and train station?

A: Our factory is 45-minute distance from Wenzhou Longwan international airport and 30-minute distance from Wenzhounan station. Platinumvalve has transfer service for our clients. If you need this service, please also share your air ticket or train ticket with us by email. We team will arrange our colleague to pick you up.

Q: Do you have a export licence?

A: Yes. We have a export licence. The members of our sales team are all have several years experience in exporting ball valve to foreign countries. From quoting to designing the drawing,from confirming the design to signing the contract, from arranging the production line to purchasing raw material,from machining to assembling,from marking to inspecting, from testing to delivering. Our each step is all under the supervison of our quality-control team and is all traceable.
