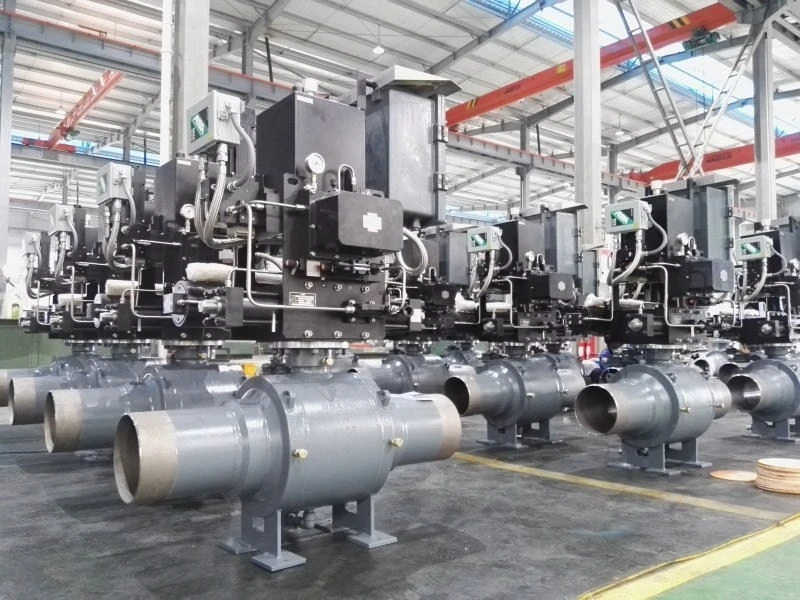

High Temperature Full Welded Ball Valve

Platinum valve produce fully welded ball valve that is forged from premium material. There are three types of the valve: Fully welded floating ball valve, fully welded trunnion ball valve and fully welded DBB ball valve. Platinum valve designs the body in two type: cylindrical and spherical fully welded bodies. Our cylindrical body have good reputation in the industy. We applying advanced welding techniques to reduce residual stress and maintain high toughness, which complies with international standards.

VALVE DESIGN

Based on API 6D and customer requirements

TEMPERATURE RANGE

-150 to 428°F (-101 to 220°C)

SIZE

NPS 1-36 (DN 25-900)

PRESSURE RATING

ASME 150 - ASME 2500

FACE-TO-FACE

As per API 6D standard

END CONNECTIONS

RF, RTJ as per B16.5 &B16.47
BW, Butt Welded as per B16.25

MATERIALS:

Carbon Steel,Stainless Steel,Low-Temperature Carbon Steel,Duplex, Super Duplex, Inconel

BODY DESIGN

Forged bolted two-piece and three-piece

SEAT DESIGN

Soft or metal seated with Hard facing on ball and seats
Double piston seats
Combination seats

FEATURES

Double block and bleed design (DBB)
Secondary seals in pure Graphite
Anti-static device
Anti-blowout stem
Emergency sealant injection on seats and stem available
Low fugitive emission stem packing available
CRA overlay on all dynamic sealing areas or on all wetted parts available
Stem extension for underground installations

OPERATOR

Manual: wrench or Gear with padlocking
Actuated: Pneumatic /Electric

TESTING & CERTIFICATIONS

Compliance with API 6D & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 607
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE
