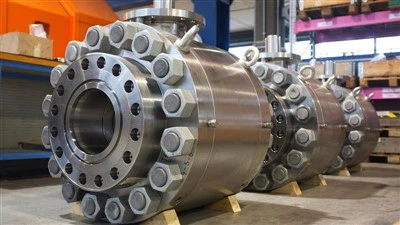

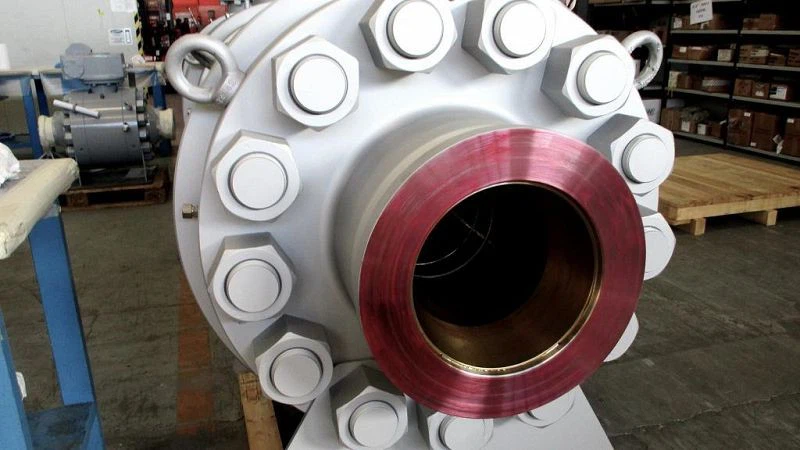

Trunnion High Pressure Ball Valve

We offer a wide range of two or three-piece forged bolted body trunnion mounted ball valves. Two independent seats provide easy bidirectional sealing to ensure the greatest level of tightness and reliability under high pressure and temperature conditions in critical isolation services. High pressure compact ball valves have the same reliability and level of quality as traditional API valves but with significant space and weight savings due to the compact flange design integrated into the valve closures. Compact welding neck flanges that connect the pipeline to the valve provide further space savings. We Design and selection of materials are fully customizable to meet the customer's project specifications.

VALVE DESIGN

Based on API 6D and customer requirements

TEMPERATURE RANGE

-150 to 428°F (-101 to 220°C)

SIZE

NPS 2 -24 (DN 50-600)

PRESSURE RATING

ASME 900 - ASME 2500

FACE-TO-FACE

As per API 6D

END CONNECTIONS

Norsok L005 compact flange
Freudenberg/ Grayloc compact flange

BODY DESIGN

Forged bolted two-piece and three-piece

SEAT DESIGN

Soft or metal seated with hard facing on ball and seats
Double piston seats
Combination seats

FEATURES

Double block and bleed design (DBB)
Secondary seals in pure Graphite
Anti-static device
Anti-blowout stem
Lip seal configuration
Emergency sealant injection on seats and stem available
Low fugitive emission stem packing available
CRA overlay on all dynamic sealing areas or on all wetted parts available
Compact and lightweight design
Lighter piping welding neck flanges with smaller dimensions offer 80% in weight savings

OPERATOR

Manual: wrench or Gear with padlocking

Actuated: Pneumatic/ Hydraulic/Electric

TESTING & CERTIFICATIONS

Compliance with API 6D & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 607
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE
