Large Size Trunnion Ball Valve
Large size trunnion ball valve is consist of valve body, ball, seat, stem, transmission device and other key components.Owing to its unique design, the ball is fixed by the upper and lower two supporting axes, so that the ball will not tilt due to the thrust of the medium during the rotation process, thus ensuring the stability and sealing of the valve.
VALVE DESIGN
Based on API 6D and Customer requirements
TEMPERATURE RANGE
-150 to 662°F (-101 to 350°C)
SIZE
NPS 1-56 (DN 25-1400)
PRESSURE RATING
ASME 150 - ASME 2500
FACE-TO-FACE
As per API 6D standard
END CONNECTIONS
RF, RTJ as per B16.5 &B16.47
BW, Butt Welded as per B16.25
SW, Socket Welded as per B16.11
Hub connection
MATERIALS:
Carbon Steel
Stainless Steel
Low-Temperature Carbon Steel
Duplex, Super Duplex, Inconel
BODY DESIGN
Forged and casting bolted two-piece and three-piece
SEAT DESIGN
Soft or metal seated with Hard facing on ball and seats
Double piston seats
Combination seats
FEATURES
Double block and bleed design (DBB)
Secondary seals in pure Graphite
Anti-Static Device
Anti Blow out stem
Emergency sealant injection on seats and stem available
Low fugitive emission stem packing available
O-ring /Lip seals and Graphite configuration
CRA overlay on all dynamic sealing areas or on all wetted parts available

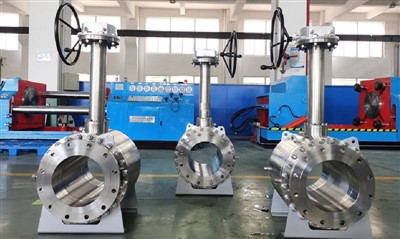

Extended bonnet for low & high temperature available
OPERATOR
Manual: wrench or Gear with padlocking
Actuated: Pneumatic/ Hydraulic/Electric
TESTING & CERTIFICATIONS
Compliance with API 6D & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 607
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE
FAQ
Q: How can I get the sample?
Q: Can you do design for us ?
Q: How about the material?
Q: What about lead time for mass production?
Generally speaking, the lead time is about 45-70days. So we suggest that you start inquiry as earlier as possible.
Q: Can you arrange shipment for customer?
