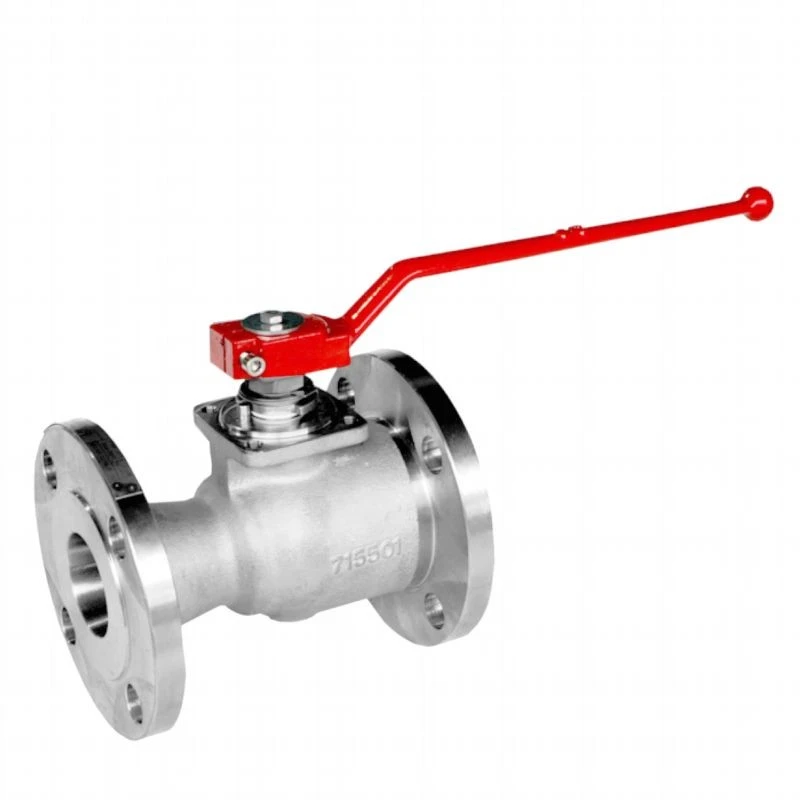

Forged Steel Floating Ball Valve

Forged steel floating ball valves are manufactured in accordance with API 6D. The valve is configured in a forged bolted two-piece split-body design with a small diameter, suitable for medium/low pressure working conditions. Characterized by simple design, the valve seats are directly inserted into the body.
The upstream flow pressure pushes the free-floating ball against the downstream seat-the resulting compression provides a perfect leak-free sealing solution.
The stem is connected at the top of the ball and allowing the valve to open and close with a quarter-turn movement.
Material selection is fully customizable to meet the customer's project specifications and several unique features are available offering an enhanced technical solution suitable for aggressive offshore environment and corrosive and abrasive fluids.

VALVE DESIGN

Based on API 6D

TEMPERATURE RANGE

-150 to 662°F (-101 to 350°C)

SIZE

NPS 1/2-6 (DN 15-150)

PRESSURE RATING

ASME 150 - ASME 2500

FACE-TO-FACE

As per API 6D standard

END CONNECTIONS

RF, RTJ as per B16.5 &B16.47
SW, Socket Welded as per B16.11

BODY DESIGN

Forged bolted two-piece

SEAT DESIGN

Soft or metal seated with Hardfacing on ball and seats

FEATURES

Secondary seals in pure Graphite
Anti-Static Device
Anti Blow out stem
Bi-directional tight shut-off
Low fugitive emission stem packing available
O-ring /Lip seals and Graphite configuration

OPERATOR

Manual: wrench or Gear with padlocking

TESTING & CERTIFICATIONS

Compliance with API 6D & ISO 5208 & API 598 inspection and testing
Fire safe and fire tested as per API 6FA/ 607
SIL 3 Certification as per IEC61508
Fugitive Emission as per ISO15848
PED 2014/68/UE

In which industries are floating ball valves widely used?

Floating ball valves are widely used in several industries due to their simple design, easy maintenance, low cost and fast delivery. Here is an overview of several major industry sectors:

Oil and gas industry:

Floating ball valves are often used to control the flow of fluids in oil and gas pipelines.

They can withstand high pressure and temperature, and have good sealing performance, suitable for use in oil and gas extraction, processing and transportation.

Chemical industry:

In the chemical industry, floating ball valves are used to handle a variety of corrosive chemicals and solvents.

They are resistant to chemical corrosion and have reliable sealing performance to ensure that the fluid does not leak into the environment.

Water treatment and water industry:

Floating ball valves are used in water treatment and water industry to control the flow and direction of water.

They are widely used in water supply systems, sewage treatment systems and industrial water treatment processes.

Power industry:

In the power industry, floating ball valves are used to control the flow of steam and water, especially in boiler and turbine systems in power plants.

They can withstand high temperatures and high pressures to ensure the stable operation of power systems.

General Industrial Applications:

Floating ball valves are also widely used in general industrial fields such as pharmaceuticals, food and beverage manufacturing, textiles and papermaking.

In these industries, floating ball valves are used to control the flow of various fluids to ensure the smooth progress of the production process.

In summary, floating ball valves are widely used in oil and gas, chemical industry, water treatment and water industry, power industry and general industrial applications. The demand for floating ball valves in these industries reflects its superior performance and wide applicability.
